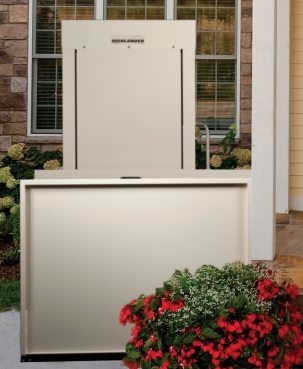

Residential Vertical Platform Lift
Product Description:

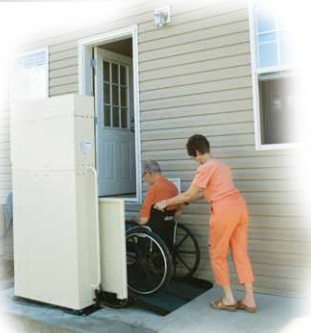

Harmar’s Residential Vertical Platform Lift (RPL) is a safe, smooth and economical solution to the barriers porches, staircases, decks and other elevation changes can create in and around a home.
Designed from the ground up to be as cost-efficient as possible, the RPL is priced to be competitive with shorter units but built to accommodate most residential applications with ease.
Available in heights from 4 to 6 feet and for use indoors and out.
|
Features
✦Automatic, folding access ramp
✦Available in AC and DC models
|
Features
✦Solid platform with non-skid surface for added safety

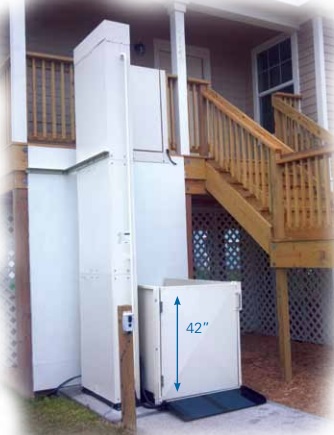

✦Solid 36” high guard panels
✦Weather-resistant design for indoor and outdoor use
|

|
 |
 |
|
Features
✦Constant pressure, paddle switch controls with emergency stop button
✦Sensitive safety pan on bottom of platform stops the lift if it meets an obstruction
✦Made in USA
|
Specifications
✦Lifting height: 4'-6' (53” to 77")
✦Rated load: 600lbs (272 kg)
✦Drive: Belt driven Acme screw / 90 VDC 1/3 hp motor. Optional 24 VDC battery powered unit
✦Power supply: 115 VAC – 20 Amp grounded circuit / 220 VAC (optional)
|
Specifications
✦Control circuit: 24 VAC (Low Voltage Controls)
✦Platform: 36” x 48” with 36” high solid guard panels and automatic folding ramp
✦Footprint: 50” x 70”
|
|

|

|
|
Specifications:
✦Speed: 10 fpm
✦Controls: Rocker switch w/emergency stop (key switch optional)
✦Manual lowering: Provided
✦Safety design standards: ASME A18.1, Section 5 – Private Residence Vertical Platform Lifts
|
Specifications
✦Safety Design: CSA B44.1 / ASME 17.5 – Elevator and Escalator Equipment
✦Safety features: Safety Pan, Final limit, Acme safety nut with monitor, Non-skid surface
✦Warranty: 2-Year parts
|
